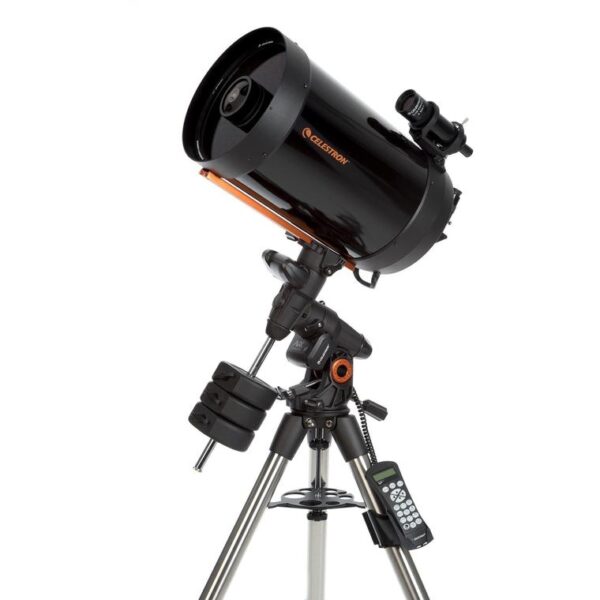

Advanced VX 11″ Schmidt-Cassegrain Telescope

$3,699.00

SKU: 572a28a47f63 Categories: , Tags: ,

Description

Optical Tube Info:
Optical Design: Schmidt-Cassegrain
Aperture: 280mm (11″)
Focal Length: 2800mm (110″)
Focal Ratio: f/10
Focal Length of Eyepiece 1: 40mm (1.57″)
Magnification of Eyepiece 1: 70x
Finderscope: 9×50
Star Diagonal: 1.25″ Star Diagonal
Optical Tube: Aluminum
Highest Useful Magnification: 660x
Lowest Useful Magnification: 40x
Limiting Stellar Magnitude: 14.7
Resolution (Rayleigh): .5 arc seconds
Resolution (Dawes): .42 arc seconds
Light Gathering Power (Compared to human eye): 1593x
Secondary Mirror Obstruction: 95mm (3.75″)
Secondary Mirror Obstruction by Diameter: 34%
Secondary Mirror Obstruction by Area: 12%
Optical Coatings: StarBright XLT
Optical Tube Length: 610mm (24″)
Optical Tube Diameter: 312.42mm (12.3″)
Optical Tube Weight: 27.5 lbs (12.4 kg)
Dovetail: CGE Dovetail bar
Mount Info:
Mount Type: Computerized Equatorial
Instrument load capacity: 30 lbs (13.6 kg)
Height adjustment range (includes mount and tripod): 1118mm – 1626mm (44″ – 64″)
Tripod Leg Diameter: 50.8mm (2″) Stainless Steel
Latitude adjustment range: 7° – 77°
Mount Head Weight: 17 lbs (7.71 kg)
Accessory Tray: Yes
Tripod Weight: 18 lbs (8.16 kg)
Weight of Counterweights: 3 x 12 lbs
Slew Speeds: 9 slew speeds – max speed 4°/second
Tracking Rates: Sidereal, Solar and Lunar
Tracking Modes: EQ North and EQ South
GPS: N/A
Dovetail Compatibility: Dual saddle plates (CG-5 and CGE saddle)
Number of Auxiliary Ports: 3 AUX Ports (1 hand control and 2 AUX Ports for optional accessories
Autoguide Port: Yes
USB Port: Yes, input on Hand Control
Power Requirements: 12V DC 3.5A (tip positive)
Motor Drive: DC servo motors
Alignment Procedures: 2-Star Align, 1-Star Align, Solar System Align, Last Alignment, Quick Align
Periodic Error Correction: Yes
Computerized Hand Control: 2 line x 18 character backlit Liquid Crystal Display, 19 LED backlit buttons, USB 2.0 Port for PC connection
NexStar+ Database: 40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects
Software: Celestron Starry Night Special Edition Software and SkyPortal App
Total Kit Weight: 98.5 lbs (44.67 kg)
Included Items: Advanced VX Equatorial Head and tripod
Accessory Tray
3 x 12 lbs counterweights
NexStar+ Hand Control
DC Power Cable (item# 18769)
Hand Control Holster
Solar Warning
  • Never look directly at the Sun with the naked eye or with an optic (unless you have the proper solar filter). Permanent and irreversible eye damage may result.
  • Never use your optic to project an image of the Sun onto any surface. Internal heat build-up can damage the optic and any accessories attached to it.
  • Never leave your optic unsupervised. Make sure an adult who is familiar with the correct operating procedures is with your optic at all times, especially when children are present.
California Residents View Proposition 65 Warning

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov.

The Advanced VX (AVX) sets a standard in mid-level telescopes, providing many of the features found on Celestron’s most sophisticated German equatorial mounts at an extremely affordable price. The Advanced VX 11” Schmidt Cassegrain telescope is one of the most affordable and portable 11” telescopes; perfect for imagers and visual observers alike.  The 11” optical tube offers 41% more light gathering than a 9.25” telescope. The Schmidt-Cassegrain design also eliminates chromatic aberration, making it a good choice for entry-level astroimaging.

The Advanced VX mount is designed to provide superior performance while taking advantage of Celestron’s most advanced technologies: All-Star Polar Alignment, Celestron PWI telescope control software, SkyAlign, and permanently programmable periodic error correction (PPEC).

If you’re an experienced imager, you’ll love taking this portable mount to a dark sky site and enjoying all the conveniences of a larger observatory mount. Or, if you’re new to imaging,  Advanced VX will help you get started with the hobby and keep up with your needs for years to come.

Computerized German equatorial mount

The Advanced VX is the smallest of Celestron’s German equatorial mounts. The computerized GoTo capability automatically tracks objects as they move across the night sky. The Advanced VX mount includes ports for a hand control, an autoguider, and 2 AUX ports for optional accessories.  The NexStar+ hand control gives you instant access to all the functions your mount has to offer. With automatic slewing and menu descriptions, any level of astronomer can master this mount in just a few observing sessions. The Advanced VX also has an impressive tripod for its class with a 2” diameter steel tripod legs providing an extra-wide stance for improved stability.

Payload capacity
The payload capacity for the Advanced VX is 30 lb. It offers a sturdy platform for any of the Advanced VX optical tubes, even when paired with optional accessories like StarSense AutoAlign, Focus Motor, a finderscope, and a camera. Celestron’s payload capacity does not include the weight of the counterweights.

Dual saddle plate
As of early 2019, Advanced VX mounts include a dual saddle plate that accommodates both CG-5 and CGE-style dovetail. Switching between the two saddle plates is as simple as moving the hand knobs into a separate set of holes. You can use an Advanced VX mount with virtually any optical tube within its weight limit.  Compatible with Vixen format dovetails 100mm or longer, not compatible with Losmandy D format plates (regardless of plate manufacturer).



Software

Celestron PWI Telescope Control Software
Your Ultimate Astronomy Software Suite

All current Celestron computerized telescopes include Celestron PWI (CPWI), the most advanced astronomy software suite provided with any consumer-grade telescope. Celestron’s experts co-developed CPWI with the engineers at PlaneWave Instruments. The result is an all-in-one solution offering you many of the same features used on PlaneWave’s observatory-class telescopes.

  • Graphical planetarium interface with PointXP advanced mount modelling allows you to add 100+ points to your alignment model for the most accurate pointing and tracking possible
  • Ideal for remote observatory setups: save and re-load your alignment and park your scope
  • Provides a complete ASCOM telescope interface to allow control of the telescope from third party software applications

For more information on CPWI and to see the user interface, click here.

Starry Night Software
Included with your purchase is a free download of Celestron’s Starry Night Special Edition Software. This advanced software by Simulation Curriculum offers detailed information about celestial objects and helps you plan your next observing or imaging session. The Special Edition software also allows you to control your telescope via computer.

Additional information

Brand

Celestron

Delivery

2 to 4 Days
